Pipe Machinery

Pipe Machinery

Machinery used in the production of stoneware clay sewer pipes and fittings
Mixing
Product Overview

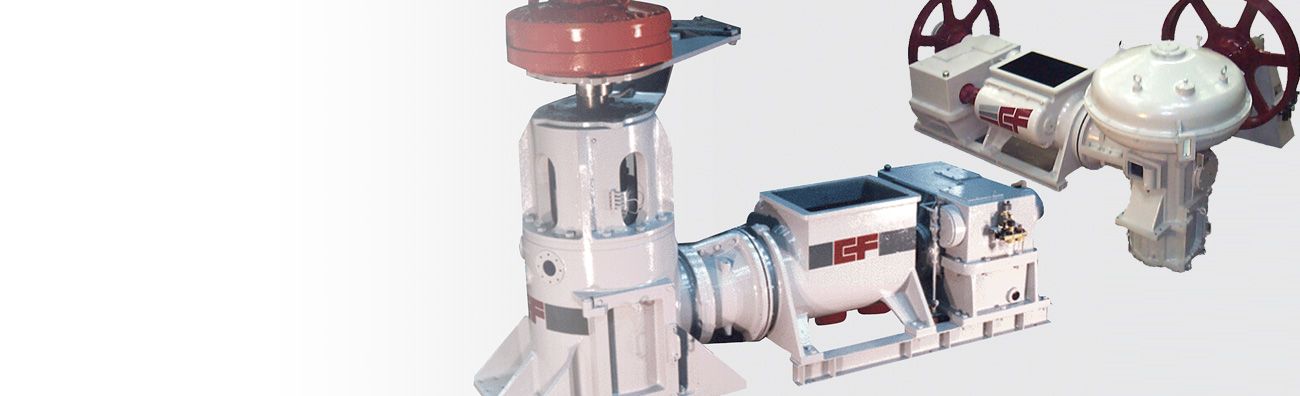

VERTICAL PIPE MACHINES

  • Standard or heavy duty machines available (arranged to suit prepared clay feed).
  • Supplied with either manual, semi-automatic or fully automatic control.
  • Available in a range of sizes with 280mm, 330 / 380mm, 450mm and 600mm diameter extrusion augers.
  • Independent feeder drive on all heavy duty models.
  • Produces pipes from 100mm dia. up to 1000mm diameters (depending on model selected).
  • Pipes up to 2 ½ meters long can be manufactured depending on machine size.
  • Drives through vee ropes drive and reduction gearbox ( 600mm dia machine through hydraulic variable speed drive unit ).
  • Mechanical or fully automatic hydraulic lift tables available with automatic die lubrication system.

VERTICAL PIPE TRIMMER (LARGE PIPES)

  • Overhead and under pipe trimmer recommended for trimming and grooving extrude socketed sewer pipes from 230 – 1000mm diameter in a vertical position.
  • Electrically and pneumatically operated.
  • Provision made for trimming both socketed and spigot ends of the pipe including the setting ring.

AUTOMATIC HORIZONTAL PIPE TRIMMER – SPE1

  • Fully automatic single stage horizontal trimmer.
  • Suitable for trimming, cutting to length and grooving pipes from 100 – 250mm diameter and lengths from 600mm – 2,000mm.
  • Multi stage machines available incorporating cleaning and spray glazing stations.
Specifications
VERTICAL PIPE MACHINES
Model Pipe Sizes Output Power Input
11” - 280mm M/c 75mm to 150mm dia. 4 to 6 Tonnes/hr 45kW
13” - 330mm M/c 100mm to 300mm dia. 6 to 8 Tonnes/hr 60kW
H.D. 15”/13” - 330 / 380mm dia. M/c 100mm to 400mm dia. 8 to 10 Tonnes/hr 110kW & 30kW
H.D. 18” - 450mm dia M/c 300mm to 600mm dia 10 to 15 Tonnes/hr 130kW & 55kW
H.D. 600mm dia Hydraulic M/c 400mm to 1000mm dia 15 to 20 Tonnes/hr 400kW & 75kW
Images
Pipe Machine Pipe Machine
Pipe Machine Pipe Machine
