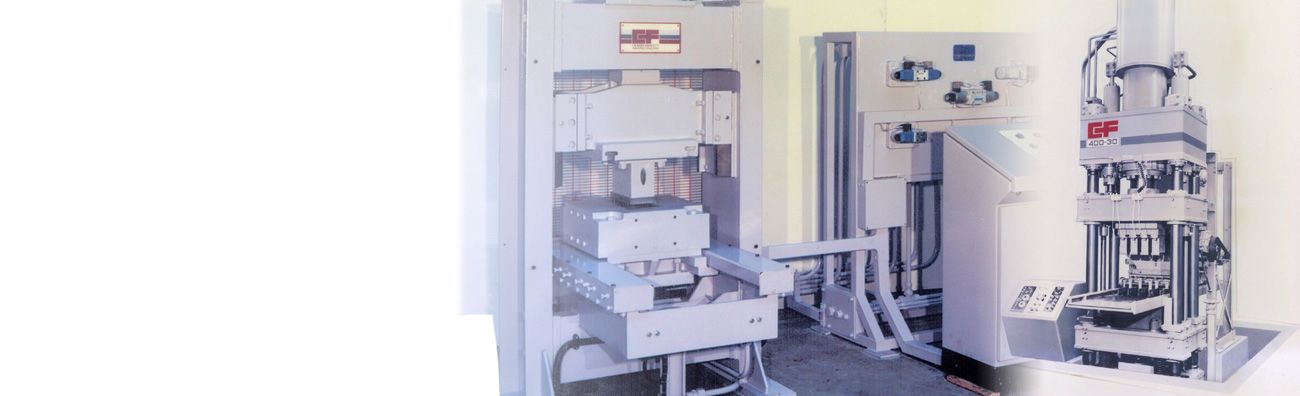

HYDRAULIC PRESS FOR SPECIAL SHAPES
- 40 to 60 tonne capacity press x 125mm stroke for use in production of special shapes.
- Suitable for pressing almost any shape of extruded section.
- Protected by photo-electric light guard system for operator safety.
- Electronically programmable press cylinder for accurate and repeatable positioning.

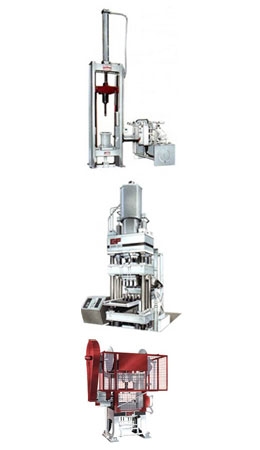

HYDRAULIC PRESSES FOR REFRACTORY PRODUCTS
- Smaller presses, available in 10 or 20 tonnes capacity for production of stoppers, round or square runners and nozzles from extruded slugs used in the refractory industry.
- Larger presses available from 250 up to 500 tonnes capacity for semi-dry refractory materials used in the steel industry.
- Includes machines with single or shuttle die, automatic machines with floating mould boxes and other special presses.
AUTOMATIC SLEEVE PRESS
- 10 tonnes pressing capacity.
- For high speed production of refractory sleeves and rod covers of both circular or squaresection at rates of 400 to 600 pieces per hour for the steel industry.
- Extruded sections are conveyed to machine for final pressing.
- Ejection mechanism and vacuum pick up system allows removal by hand to the drying racks or kiln car.
| HYDRAULIC PRESSES | ||||
|---|---|---|---|---|
| Capacity ( tonnes ) | Stroke (mm) | Power Input ( KW ) | Output per hour | Maximum size* single die |
| 10 | 1200 | 7.5 | 300 | On request |
| 20 | 1400 | 7.5 | 300 | On request |
| 40 to 60 | 120 | 7.5 | 50 to 150 | Special shapes |
| 250 | 610 | 32 | 220 | 458x228x100 |
| 300 | 535 | 32 | 200 | 610x305x150 |
| 400 | 610 | 45 | 220 | 458x228x100 |
| 500 | 90 | 45 | 180-240 | 406x228x100 |
