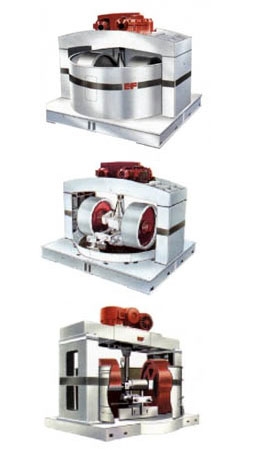

GMF WET GRINDING MILLS

  • Three models, 2.1 metre, 2.7metre and 3.3metre diameter bases available each accommodating two rollers running on overlapping tracks.
  • Perforated grid discharge onto single conveyor.
  • Has rolled steel support beams for rigid support without discharge interference.

GMG WET GRINDING MILL

  • 3.35m diameter base accommodating two rollers running on overlapping tracks.
  • Rollers: 560mm face, 7.6 and 8.6 tonnes respectively.
  • Perforated grid discharge onto single conveyor.
  • Has three deep section RSJ’s for rigid support without discharge interference.

SERIES 2000 DELTA 45 WET GRINDING MILL

  • Super duty single machine for high capacity plant providing consistent operation over long periods.
  • Pan diameter 4.5m accommodates two rollers running on overlapping tracks.
  • Rollers: 2000mm diameter and 800mm face, 14 tonnes and 10.75 tonnes respectively (weighted rollers optional).
  • Provides single point or multi-point discharge onto single or double extraction conveyors.
  • Drive options available: Over driven with gearbox or under driven with V.S. hydraulic drive.

GMH BATCH MIXING MILLS

  • Range of sizes available, similar to GMF wet grinding mills but with solid base.
  • Processes measured quantities of material in batches for later discharge through a power operated sliding discharge door.
  • Recommended for mixing and tempering a range of materials such as fireclays, ganister, dolomite, carbon etc.
  • Base can be supplied with heaters for additives such as tar.
WET GRINDING
Pan Mill Type M/c Size (metre) Material Input (mm) Material Output (mm) Throughput (T/ Hr) Power (kW)
GMF 2.1 Dia 2.7 Dia 3.35 Dia     150 to 200   10 to 25 (Variable to suit grid size) 5 to 10 10 to 15 15 to 25 22 30 to 37 45
GMG 3.35 Dia 30 to 50 55 to 75
Delta 45 4.5 Dia 60 to 100 132 to 150
BATCH GRINDING
Pan Mill Type M/c Size (metre) Material Input (mm) Max. Charge ( kg ) Throughput (T/ Hr) Power (kW)
GMH 2.1 Dia 2.7 Dia 3.35 Dia To suit mix required   300   1350 5 to 10 10 to 15 15 to 25 22 37 45
