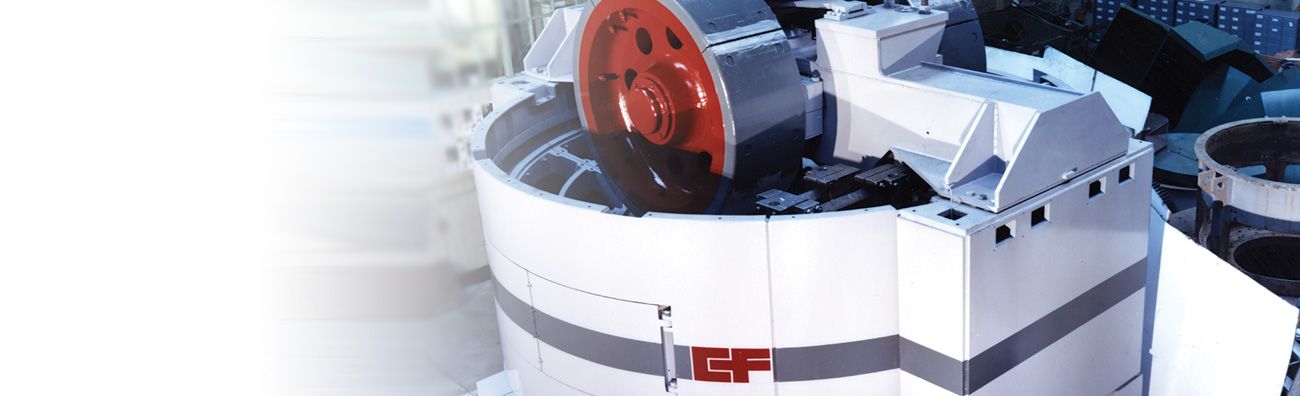

INCLA II AND INCLA III DRY GRINDING MILLS
- Heavy duty mills capable of grinding shales, marls and clays of a dry nature at high outputs.
- Fitted with inclined grids, roller suspension device (optional), worm reduction gearbox and fully adjustable curved scrapers.
- Optional hydraulic drive available.
- Both mills have a 3.35 mtr diameter base.
- Incla II has 5 tonne rollers, Incla III has 6 tonne offset mounted rollers for finer grinding.
SERIES 2000 INCLA 45
- Constructed mainly from steel fabrications with large 4.5 mtr diameter base designed for high output.
- Offset mounted rollers of 10 tonnes each for fine grinding.
- Hydraulic variable speed drive makes it virtually unbreakable.
- Discharge either through inclined grate, or inclined grate and rim.
- Removal of ground material arranged from any one of four sides of the foundation.
- Simple foundation construction
| DRY GRINDING | |||||
|---|---|---|---|---|---|
| Pan Mill Type | M/c Size (metre) | Material Input (mm) | Material Output (mm) | Throughput (T/ Hr) | Power (kW) |
| Mk 11 Incla | 3.35 Dia | Up to 200 | 1 to 4 | 15 to 25 | 55 |
| Mk 111 Incla | 3.35 Dia | 20 to 40 | 75 | ||
| Incla 45 | 4.5 Dia | 45 to 80 | 160 | ||
